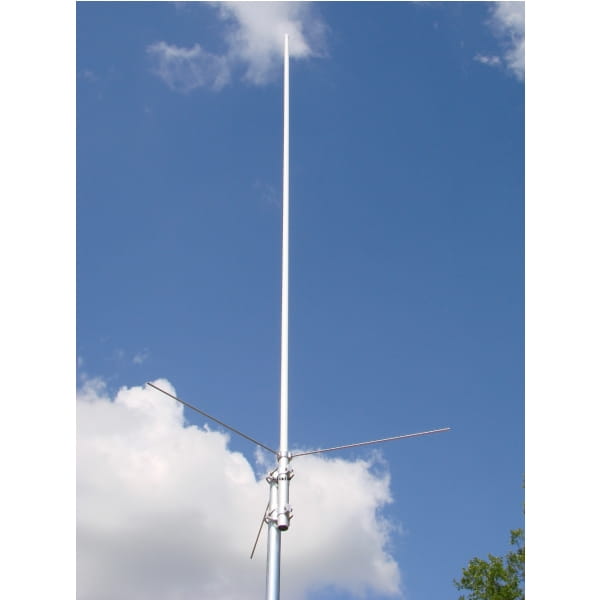

ANTENA SIRIO GPF 22 N VHF 2x5/8

Dostępność: brak towaru

Cena: 350,00 zł 350.00

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent: SIRIO

Kod produktu: E8CF-47188

Opis

• Type: 2x5/8λ ground plane colinear
• Frequency range: tunable from 140 to 175 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth at -3 dB = 33°
• Radiation angle: 0°
• Polarization: vertical
• Gain: 3.8 dBd - 5.95 dBi
• Bandwidth at V.S.W.R. 2:1: 4 MHz at 140 MHz
• V.S.W.R. at res. freq.: ≤ 1.2:1 at 140 MHz
• Max. power: 200 Watts
• Feed system / position: transformer DC-ground/ base
• Connection: N-female gold plated

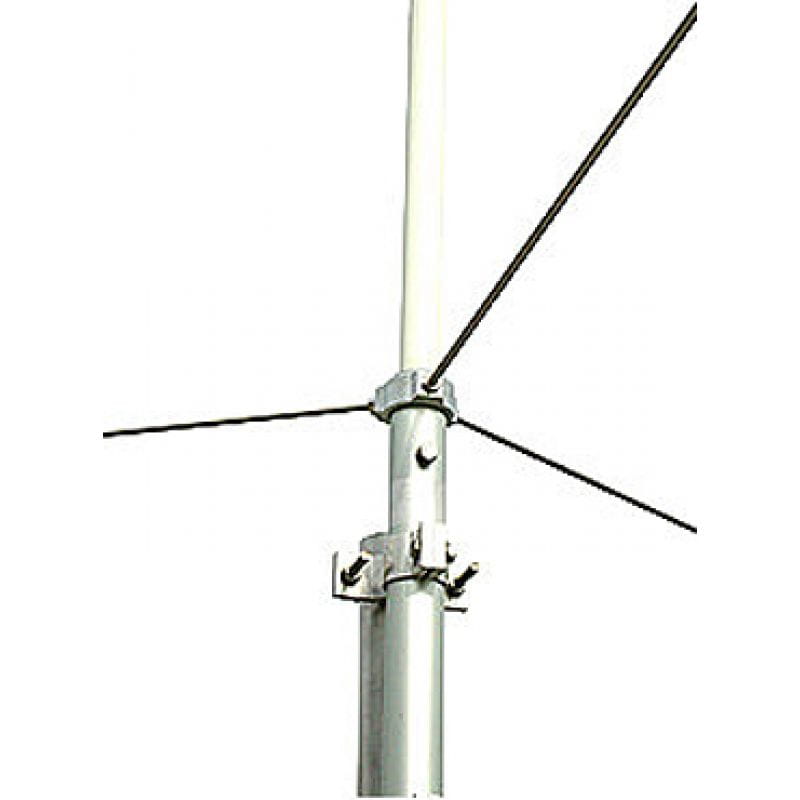

Mechanical data
• Materials: Fibreglass,Aluminium, Brass, Stainless Steel • Wind load / resistance: 95 N at 150 Km/h / 150 Km/h • Wind surface: 0.08 m² • Height (approx.): 3230 mm • Weight (approx.): 1630 gr • Radial length (approx.): 495 mm • Mounting mast: Ø 35-54 mm
